Bridge Inflatable Rubber Core Mold is manufactured from high-strength rubber materials with excellent wear resistance, aging resistance, and tensile strength. It can be customized in various sizes and specifications according to the requirements of hollow slabs, box girders, and other bridge structures.The inflatable design makes installation, removal, transportation, and storage extremely convenient, helping to improve construction efficiency and reduce project costs. After use, it can be deflated and folded for repeated applications, making it a cost-effective, durable, and environmentally friendly solution for precast bridge construction。
Specification：
Material: High-strength rubber with excellent flexibility and durability

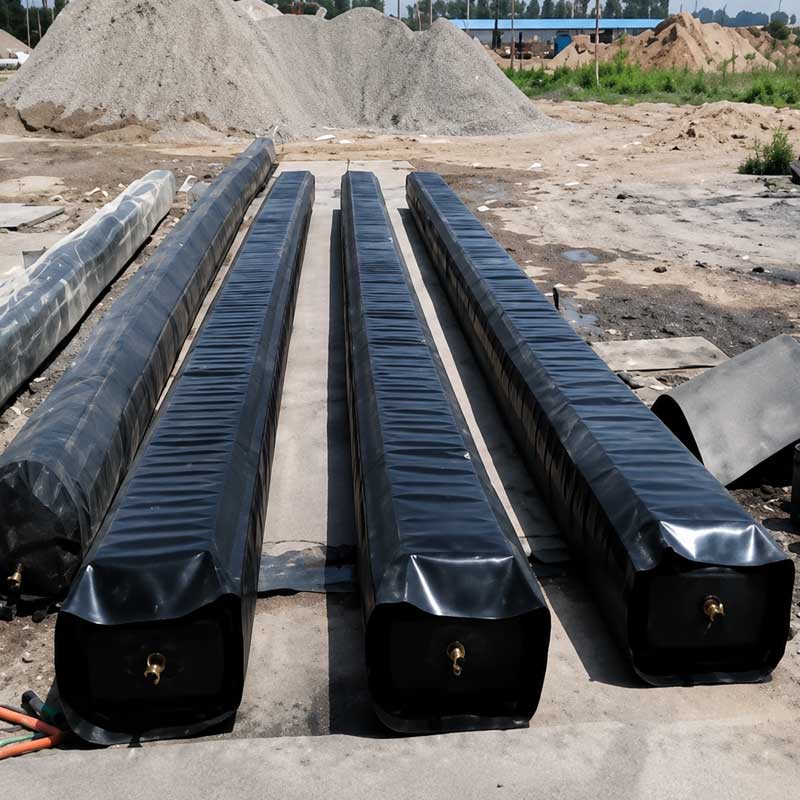

Shape: Round, oval, rectangular and customized designs
Working Pressure: 0.02–0.05 MPa
Application: Hollow slab bridges, box girders, and precast concrete structures

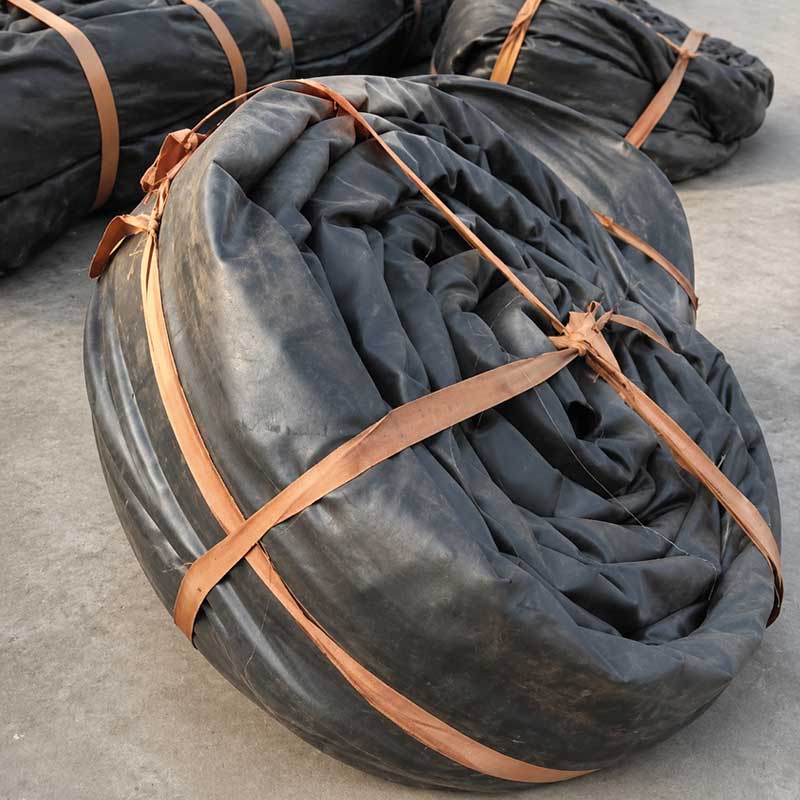

Reusable: Deflatable and foldable for repeated use and easy transportation
Customization: Available according to project requirements
Construction Method of Bridge Inflatable Rubber Core Mold：

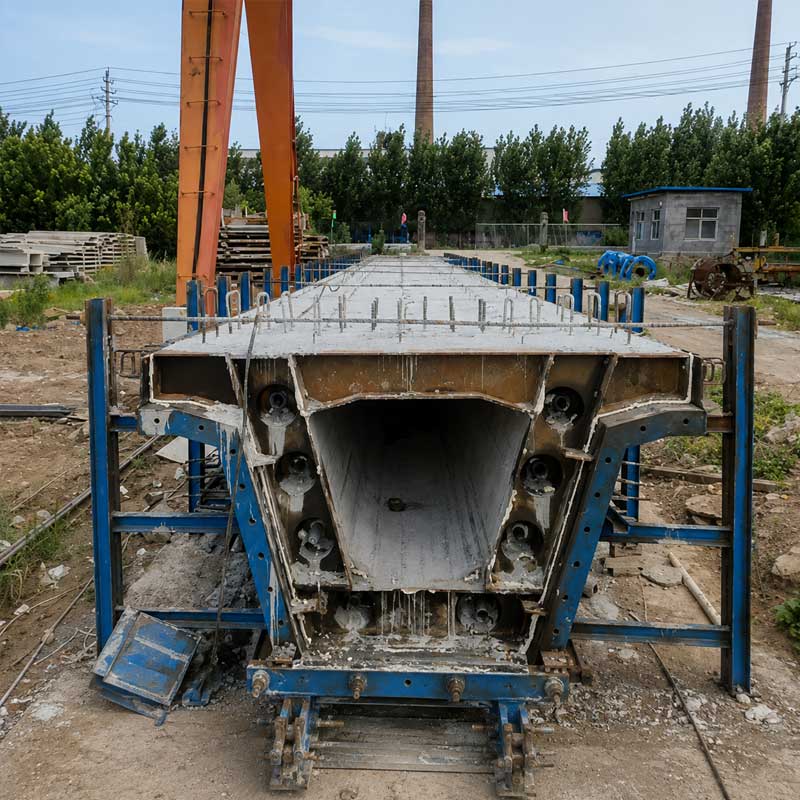

Bridge inflatable rubber core molds are mainly used for forming internal cavities in precast or cast-in-place concrete structures such as hollow slab bridges and box girders. The mold is inflated to create the required shape, then deflated and removed after the concrete reaches sufficient strength. It features easy installation, lightweight design, and reusability.
Important Notes:
·Avoid sharp objects and mechanical damage during operation.
·Keep the recommended inflation pressure to ensure proper forming performance.
·Clean and dry the mold after each use.
·Store in a cool, dry place away from sunlight, heat, oil, and chemicals.
·Proper maintenance allows multiple reuse and extends service lif
Installation Steps:
Position and Fix the Core Mold

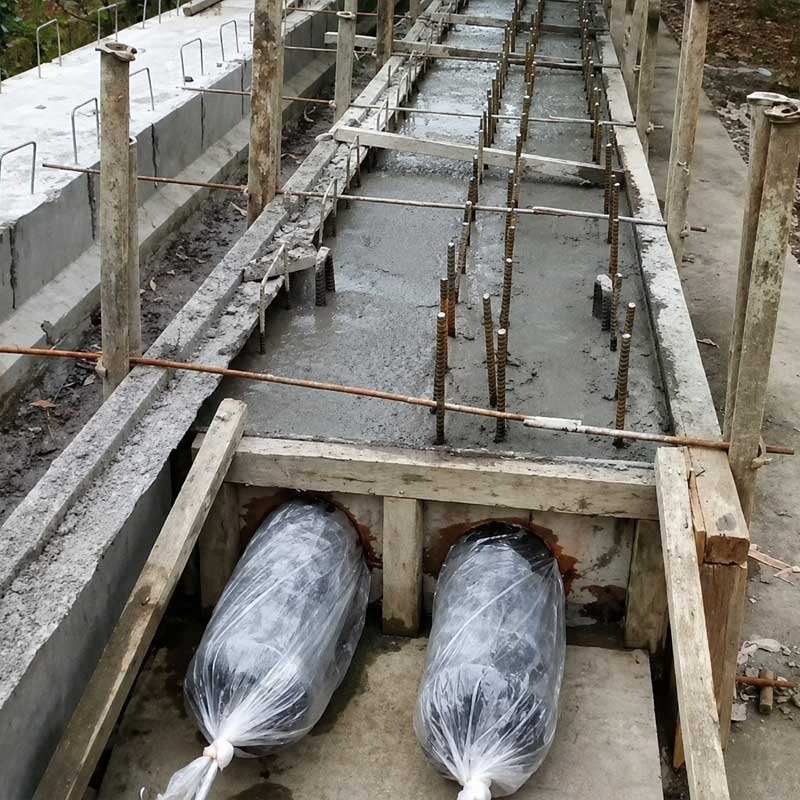

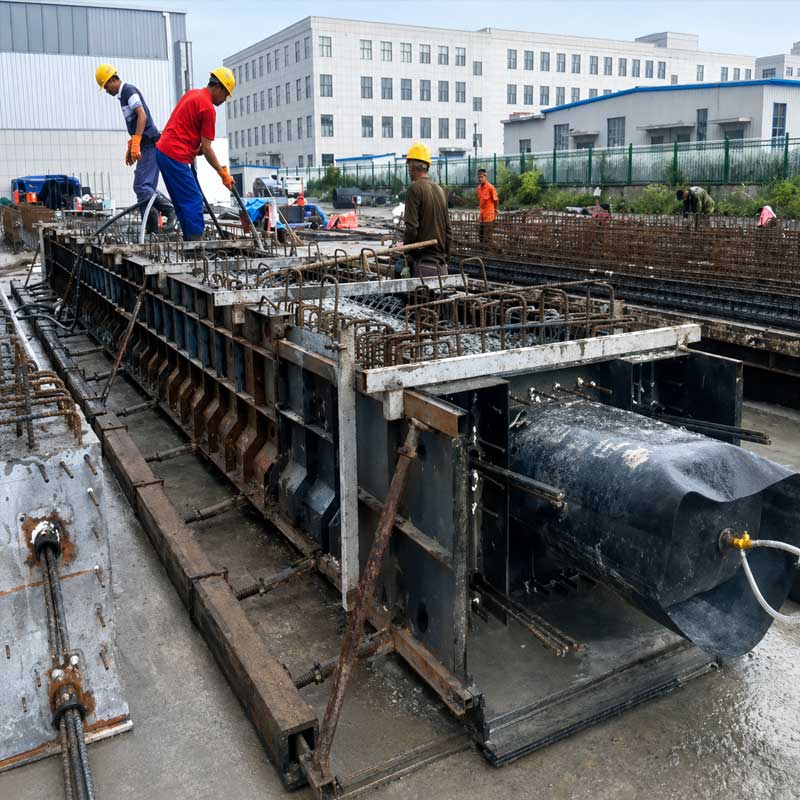

Place the inflatable rubber core mold inside the reinforcement cage according to the designed dimensions. Adjust its position and secure it with steel supports or fixing devices to prevent displacement during concrete pouring.
Inflate the Mold

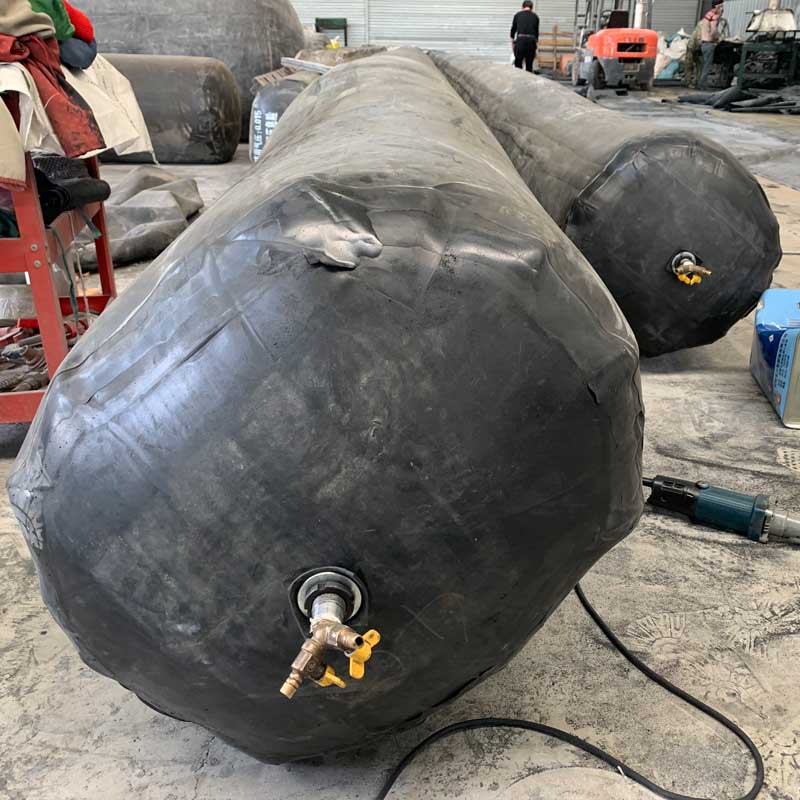

Inflate the core mold through the air valve until it reaches the specified pressure and shape. Check the surface condition and ensure there is no air leakage.
Concrete Pouring
After completing reinforcement work and formwork installation, pour concrete around the inflated mold. Avoid direct contact between the vibrator and the rubber mold to prevent damage.
Concrete Curing
Cure the concrete according to project requirements. The mold should only be removed after the concrete reaches the required strength.
Deflation and Removal
Open the air valve and slowly release the air pressure. After the mold contracts, pull it out from the concrete cavity. Clean and store it properly for future use.
